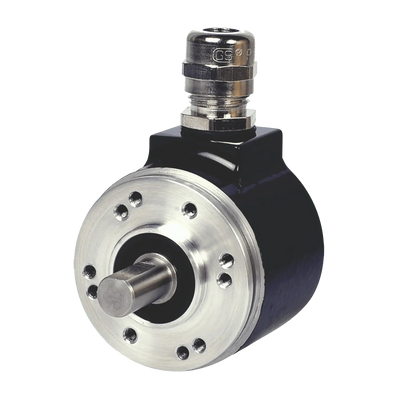

SIZE 40 SHAFT ENCODER- J-40S
Features:
- Encoder designed for Induction motor feedback applications
- Through and blind bore up to 16mm
- Robust design, less than 52 mm in diameter with gland and dicast covers
- Shatterproof polycarbonate disk
- Designed with many options, including various types of connectors and mounting flex
- Collet clamp for fixing the motor shaft
- LED power compensated for aging and temperature
- Robust ASIC-based design
- Robust electrical design capable of taking a surge across the supply voltage
- Output stage with long-distance cable driving capability
SIZE 40 HOLLOW SHAFT ENCODER J-40H/T
Features:
- Compact size encoder specifically designed for narrow space installation
- Through and blind bore up to 8mm
- Robust design for 40mm size with gland and dicast covers
- Shatter proof polycarbonate disk
- LED power compensated for aging and temperature
- Robust ASIC-based design
- Robust electrical design capable of taking surge across supply voltage
SIZE 50 SHAFT ENCODER J-50S
Features:
- Encoder designed for Induction motor feedback applications
- Robust design less than 52 mm diameter size with gland and dicast covers
- Shatter proof polycarbonate disk
- LED power compensated for aging and temperature
- Robust ASIC-based design
- Robust electrical design capable of taking surge across supply voltage
SIZE 50 HOLLOW SHAFT ENCODER J-50H/T
Features:
- Encoder designed for Induction motor feedback applications
- Through and blind bore up to 16mm
- Robust design, less than 52 mm in diameter with gland and dicast covers
- Shatterproof polycarbonate disk
- Designed with many options, including various types of connectors and mounting flex
- Collet clamp for fixing the motor shaft
- LED power compensated for aging and temperature
- Robust ASIC-based design
- Robust electrical design capable of taking a surge across the supply voltage
- Output stage with long-distance cable driving capability
SIZE 58 ENCODER FLANGE MOUNT J-58A
Features:
- Encoder designed for industrial applications
- Industry standard 58mm diameter with dicast covers and many termination options
- High radial and axial load-taking capability
- Shatter proof polycarbonate disk
- LED power compensated for aging and temperature
- Robust ASIC based design
- Robust electrical design capable of taking surge across supply voltage
- Output stage with long distance cable driving capability
SIZE 58 ENCODER SERVO MOUNT- J-58B
Features:
- Encoder designed for machine tool spindle applications
- Robust design with 58mm diameter with dicast covers and many termination options
- Shatter proof polycarbonate disk
- LED power compensated for aging and temperature
- Robust ASIC based design
- Robust electrical design capable of taking surge across supply voltage
- Output stage with long distance cable driving capability
MACHINE TOOL ENCODER J-68S
Features:
- Exact Machine Tool Encoder
- High Shaft Loading Capacity
- Extra Heavy Duty Unit With Double Sealing
HEAVY DUTY ENCODER J-9HD
Features:
- Extremely robust construction having heavy-duty bearings on opposite faces of housing, allowing use of rigid coupling. An optional terminal box for ease of connection.
- Optional driver circuit for long-distance cable (100m).
- An optional unbreakable disc is available to withstand heavy shocks. heavy-duty
ELEVATOR ENCODER J-80
Features:
- One of the most compact encoder designs for direct mounting behind an induction motor - Elevator Application
- Shatterproof polycarbonate disk
- LED power compensated for aging and temperature
- Robust ASIC-based design
- Robust electrical design capable of taking a surge across the supply voltage
- Output stage with long-distance cable driving capability
